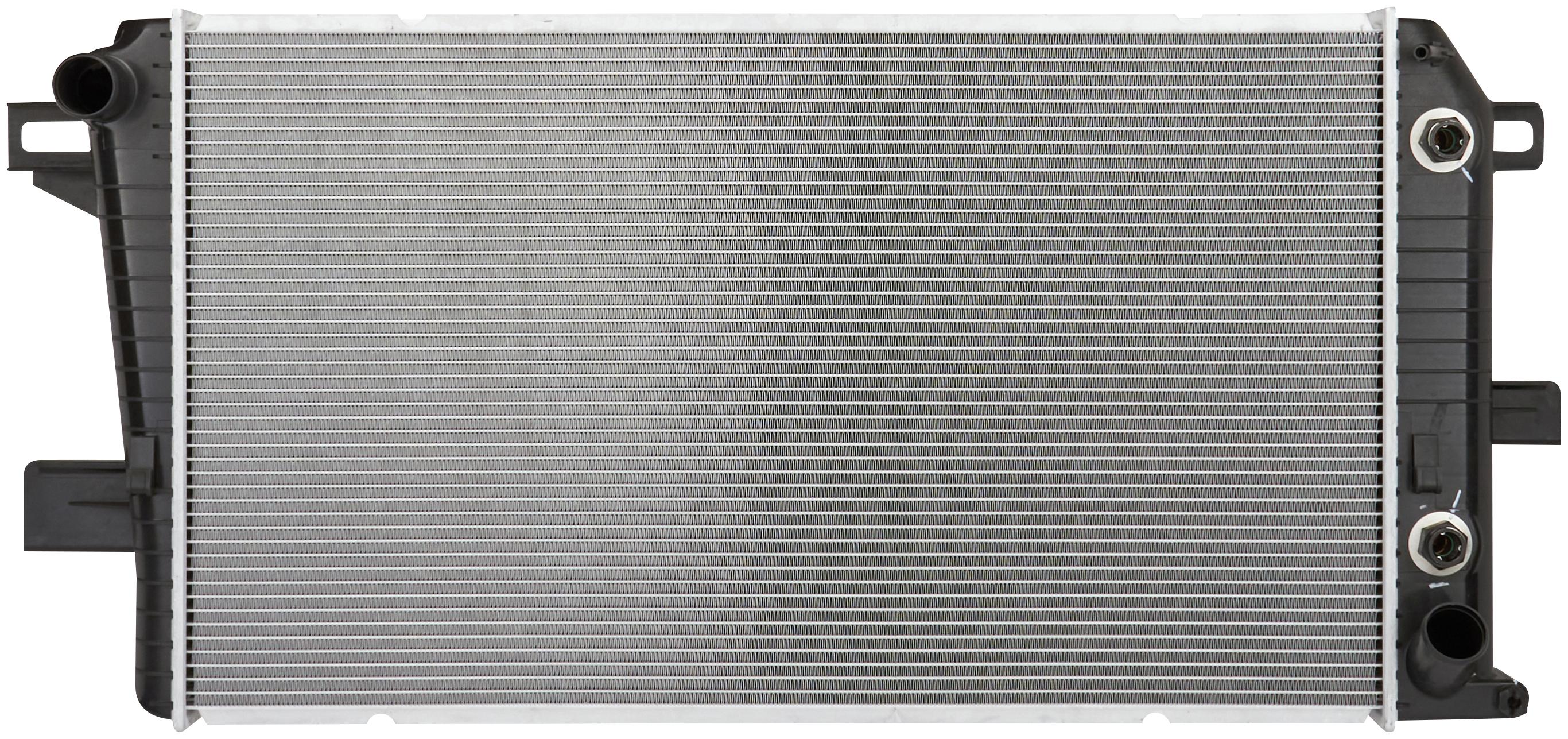

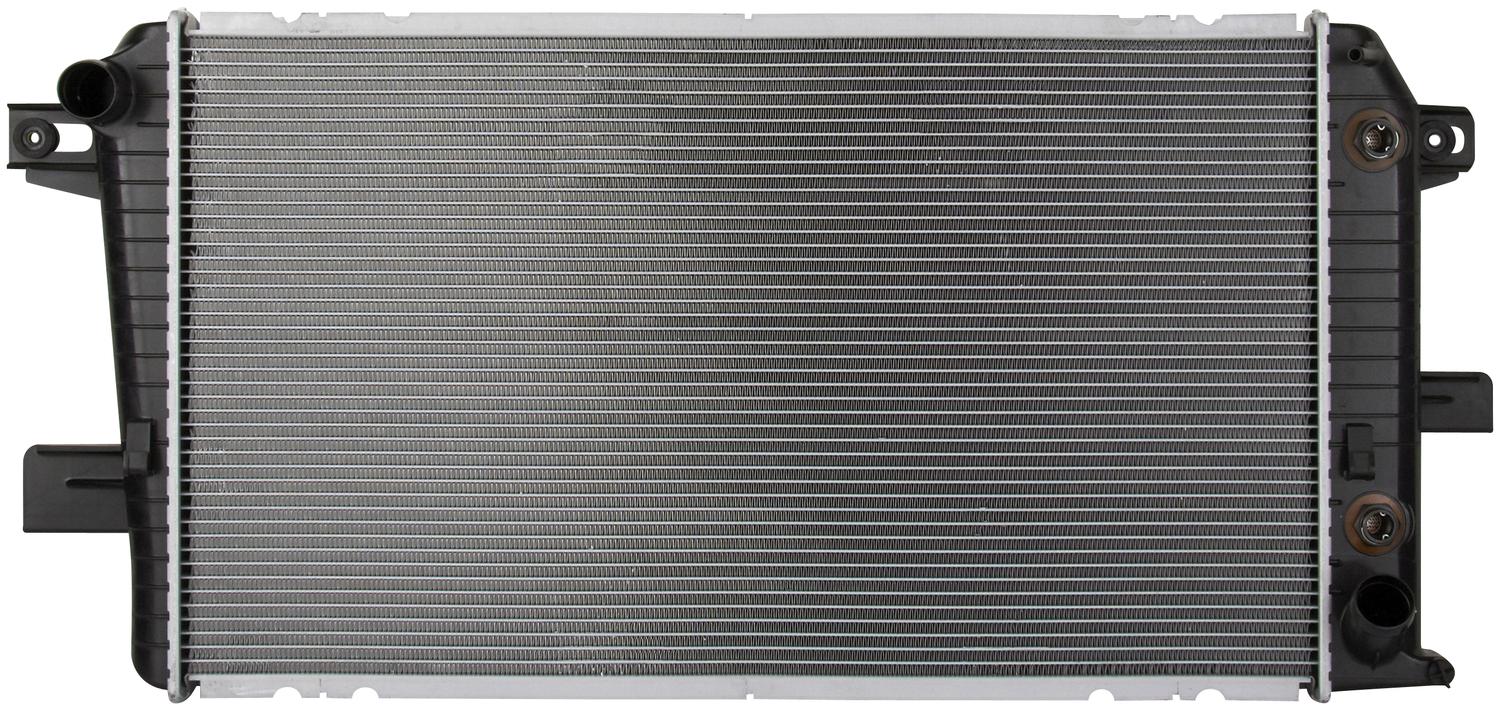

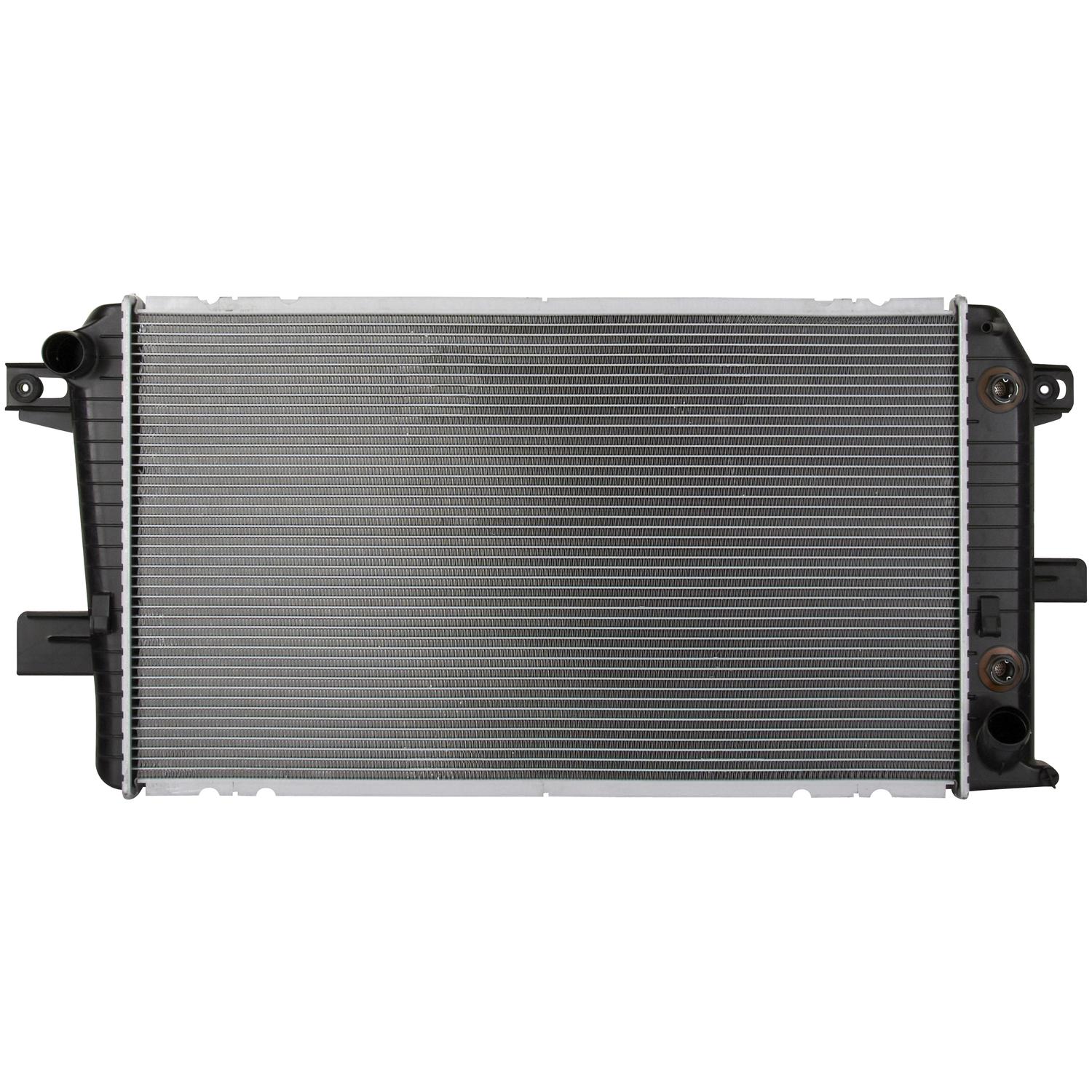

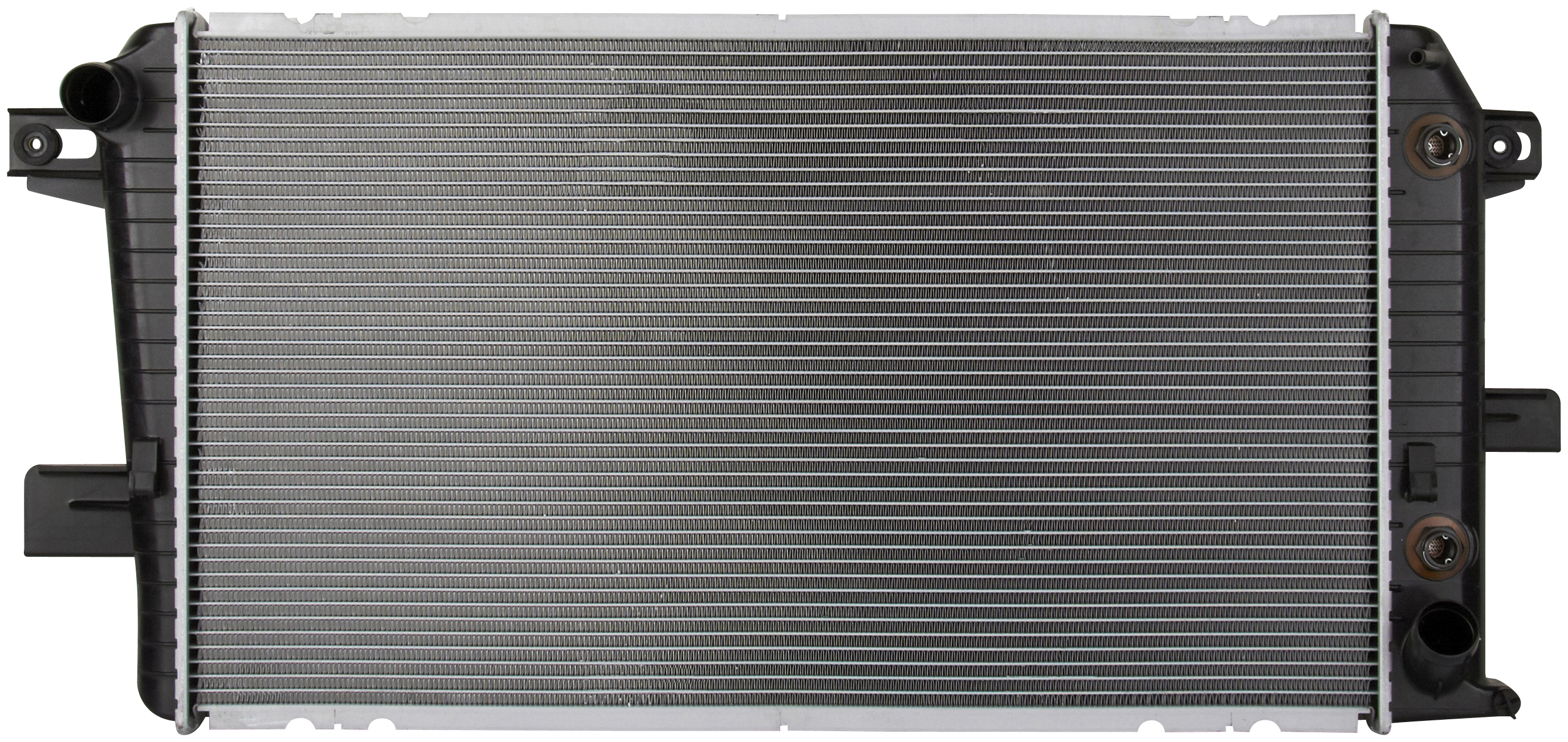

Radiator
Part # CU2510 | Line Code: SPI
brandNameImage
brandNameImage
$570.52
$570.52
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Heavy Duty Supplier Yes
Inlet Header Length 525
Transmission Oil Cooler Included Yes
Inlet Location Top Left
Engine Oil Cooler Included No
Installation Kit / Hardware Kit / Package Contents (ACPK050) 1 x Instruction Sheet 2 x GM 5/8" Quick Connect Oil Cooler Adapter X 7/8"-14 UNF Male
Transmission Oil Cooler Type Plated
Core Width 487
Core Material Aluminum
California_Prop 65 Message Y
Inlet Diameter 46
Inlet Header Width 81
Down Flow Or Cross Flow Type Cross Flow
Core Row Quantity 2
Tank Material Plastic
Outlet Header Width 81
Transmission Oil Cooler Fitting Type 7/8-14 UNF Female
Outlet Diameter 46
Outlet Header Length 525
Internal Transmission Oil Cooler Yes
Mounting Type Saddle
Core Height 864
Core Thickness 56
Transmission Oil Cooler Distance between Fittings 292
Internal Engine Oil Cooler No
Outlet Location Bottom right
Transmission Oil Cooler Plate Quantity 5
Frame Included No
Part Terminology Radiator
Features & Benefits
expand_more
The structure and design of Spectra Premium Radiators are built to undertake the same durability and expectations of that of the OE.
Application Summary
expand_more
05-01 Chevrolet Silverado 2500 HD (V8 6.6L); 05-01 Chevrolet Silverado 3500 (V8 6.6L); 05-01 GMC Sierra 2500 HD (V8 6.6L); 05-01 GMC Sierra 3500 (V8 6.6L)
