| Extended Bumper Stop | Yes |
| Bloqueo hidráulico extendido | No |
| Cylinder Outside Diameter | 57.2 |
| Tipo de Montura Inferior | Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Most Popular Make / Model | Ford F-150 |
| Body Color | White |
| Extended Length (INCH) | 29.38 |
| Compressed Bumper Stop | No |
| Spring Included | No |
| Tope de rebote extendido | Yes |
| Body Diameter | 2.25 |
| Extended Length | 746.3 |
| Suspension Shock Absorber Type | Telescopic |
| Cubre polvo | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Boot Included | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Bearing Plate Included | No |
| Color | White |
| Air Ride Suspension | No |
| Internal Construction Type | Twin Tube |
| Max Year Covered | 2019 |
| Diámetro del Tubo de Reserva | 2.250 |
| Lower Mount Code | LS38 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Tope de rebote comprimido | No |
| Total Part VIO | 2042467 |
| Dust Shield Color | Red |
| Min Year Covered | 2015 |
| Travel Length (INCH) | 11.82 |
| Adjustable Rebound | No |
| New Or Remanufactured | New |
| Lower Mounting Code | LS38 |
| Parts Pack | None |
| Adjustable Damping | No |
| Upper Mounting Description | Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Upper Mounting Code | LS38 |
| Gas Charged | Yes |
| Rod Diameter | 15.8 |
| Cylinder Color | White |
| Spring Isolators Included | No |
| Compressed Length (INCH) | 17.56 |
| Most Popular Year | 2018 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Extended Hydraulic Lockout | No |
| Adjustable Dampening | No |
| Accesorio(s) | None |
| Shock Absorber Bore Size | 1.3779527559055118 |
| Shock Stroke | 300.2 |
| Shaft Material | Nitro-Carburized Steel |
| Spring Seat Included | No |
| Dust Shield Included | Yes |
| Air Adjustable | No |
| Finish | Painted |
| Internal Rebound Bumper | Yes |

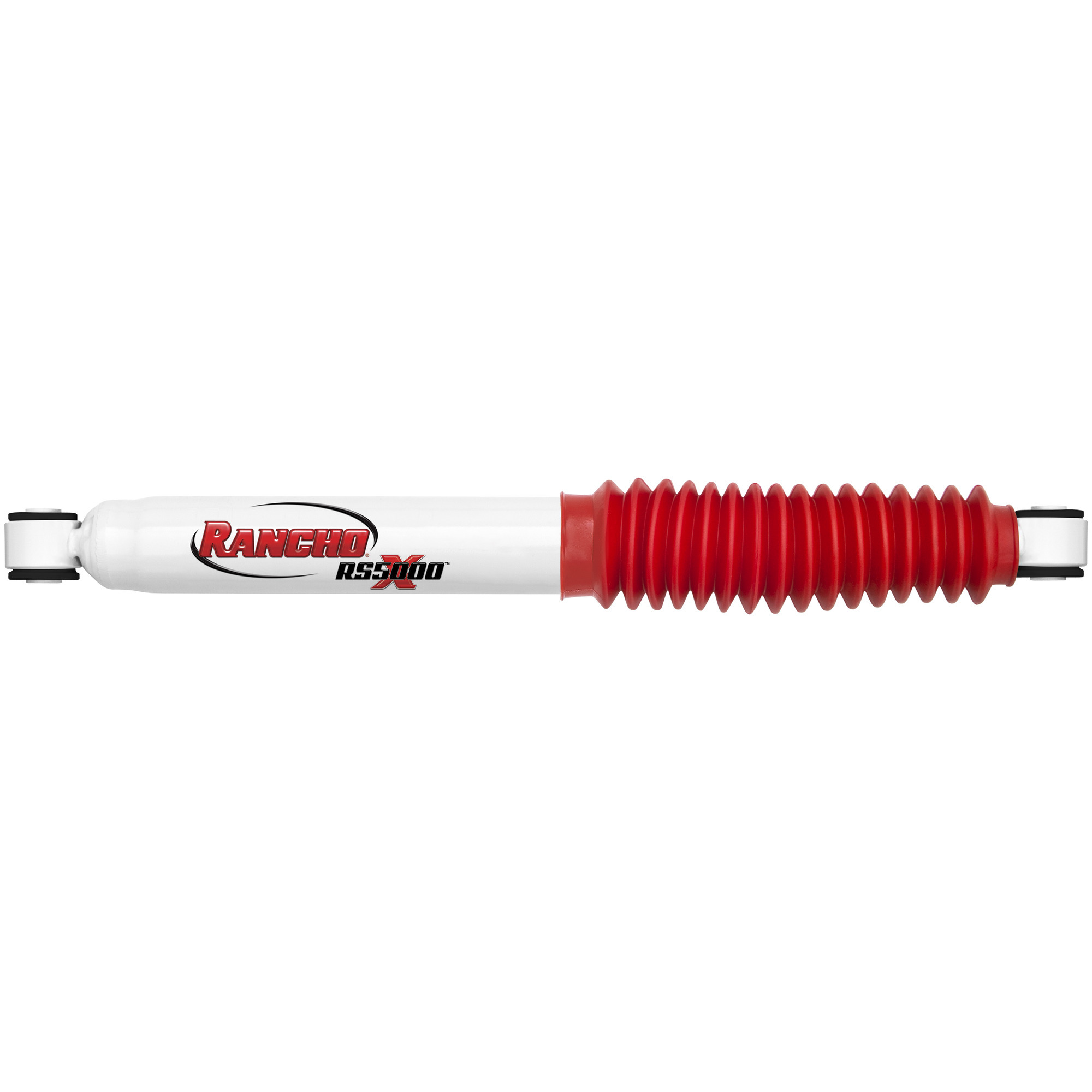

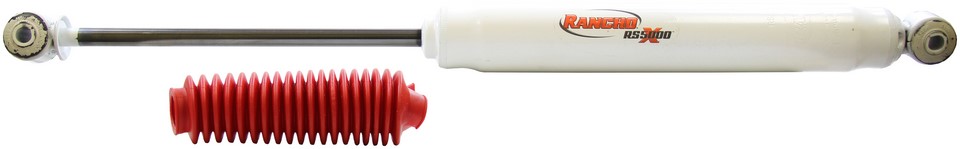

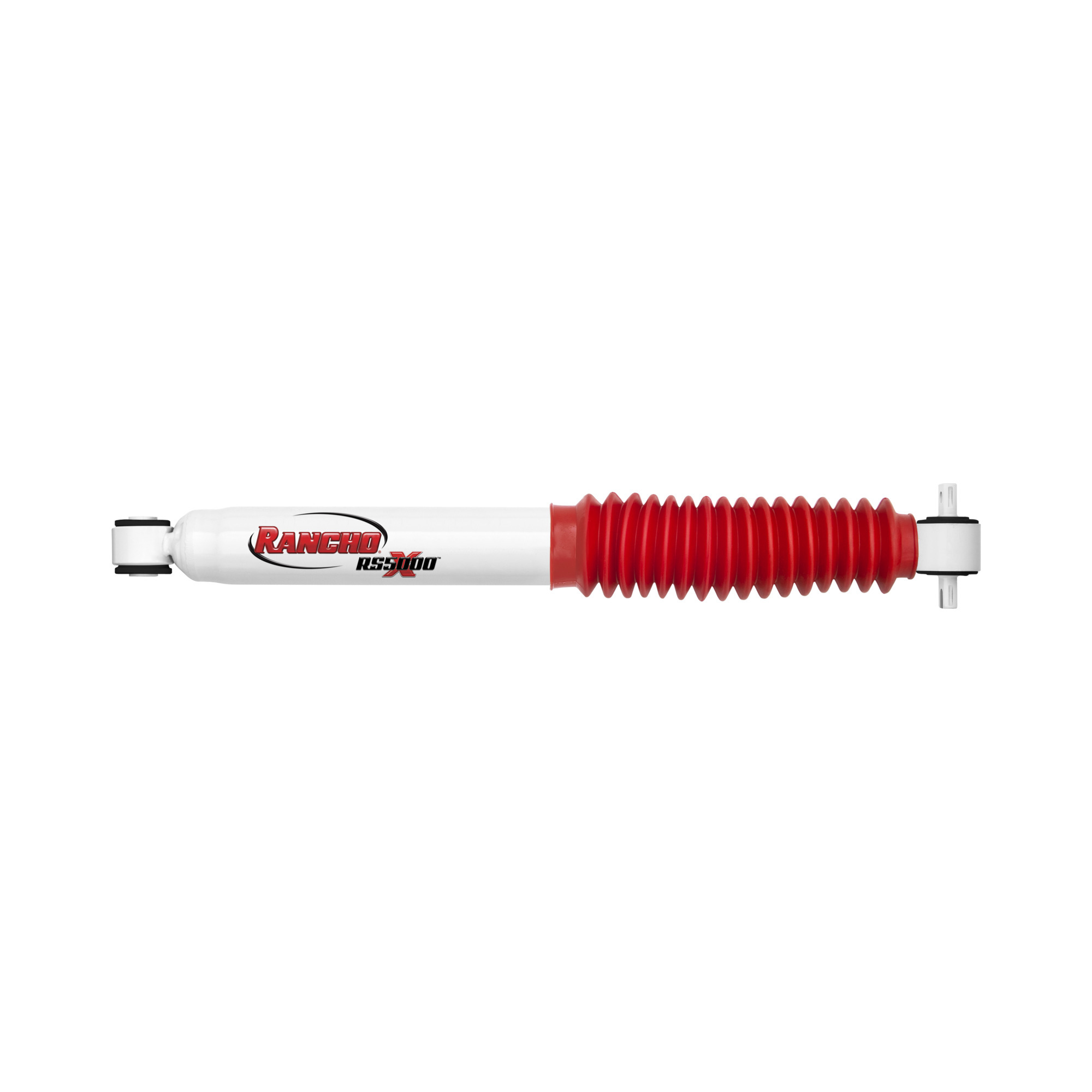

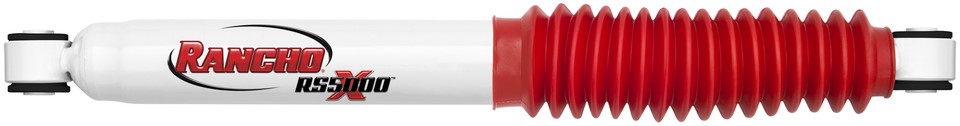

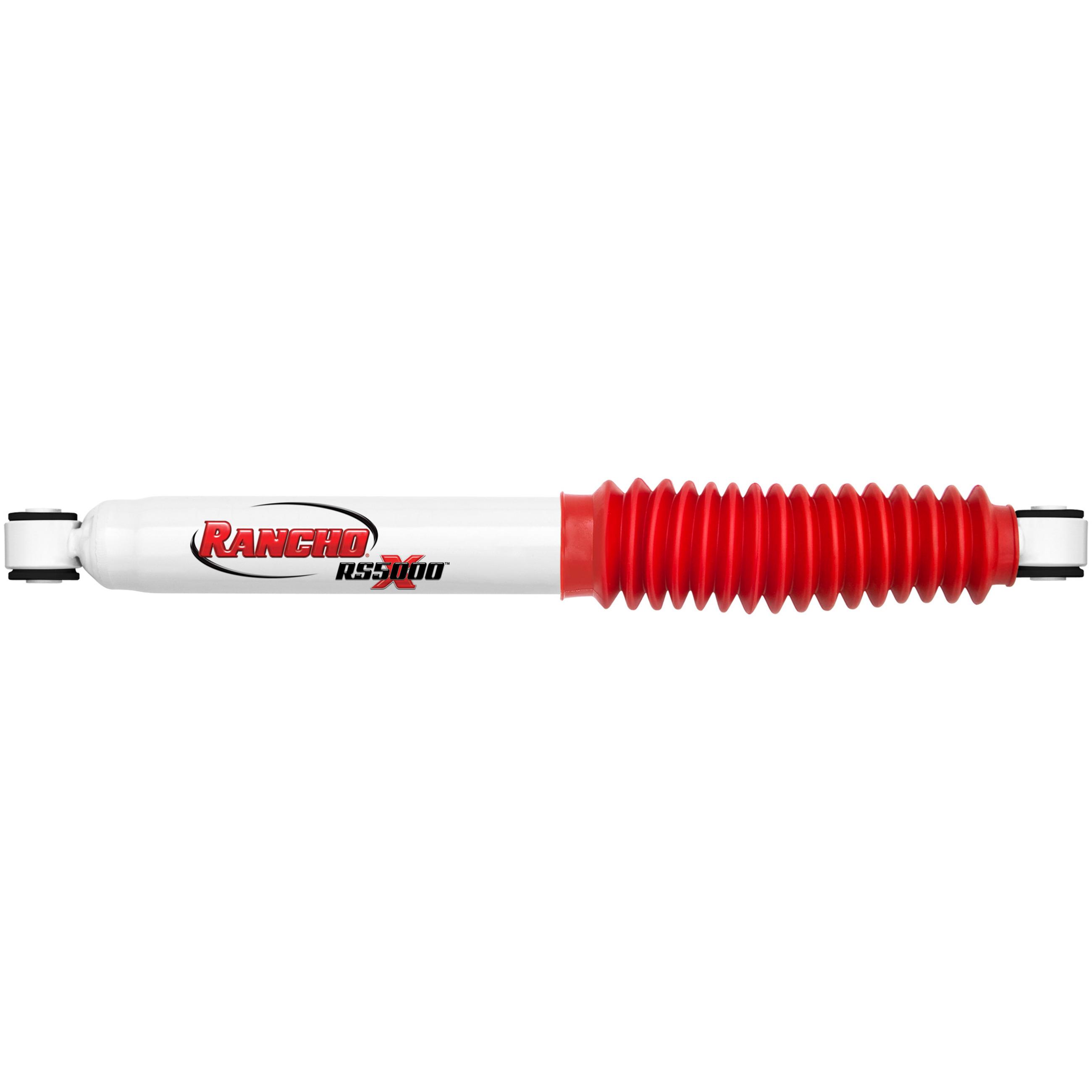

| Part Description | Shock Absorber |
| Compressed Length | 446 |
| Parts Pack(s) | None |
| Product Grade | Premium |
| Mounting Hardware Included | No |
| Coil Over Springs Included | No |
| Tipo de Montura Superior | Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 38.1MM Sleeve OAL |
| Reserve Tube Diameter (INCH) | 2.25 |
| Type | Telescopic |
| Body Material | Steel |
| Lower Mounting Description | Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Reserve Tube Diameter | 2.25 |
| Travel Length | 300.2 |
| Prop 65 Label (Yes/No) | No |
| Cylinder Material | Steel |
| Upper Mount Code | LS38 |
| Dust Shield | Yes |
| Grade Type | Performance |
| Part Terminology | Suspension Shock Absorber |
