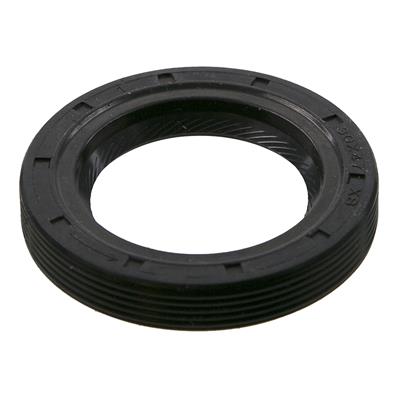

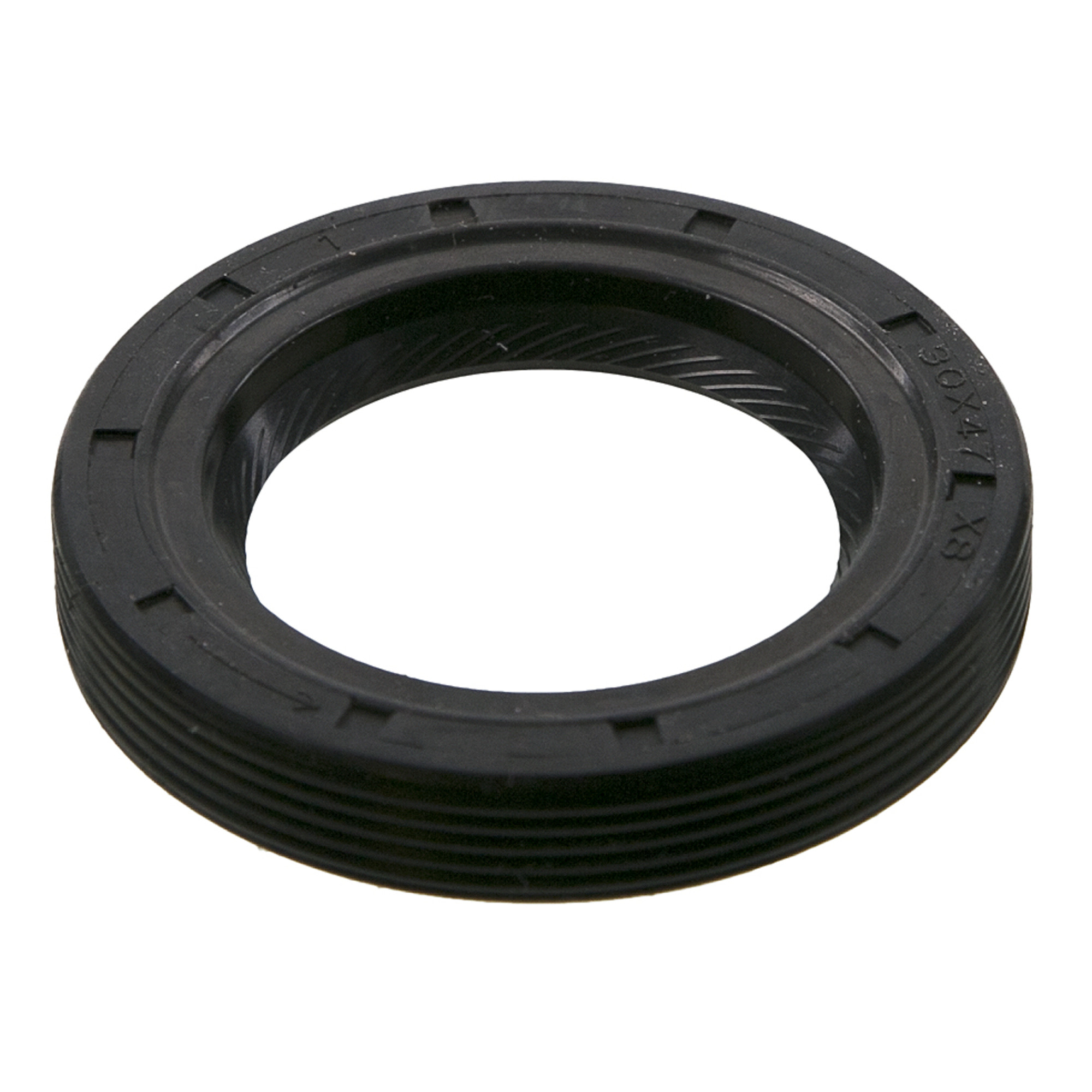

Axle Output Shaft Seal
Part # 711049 | Line Code: NAT
brandNameImage
brandNameImage

$34.67
$34.67
error
Not Fitted

Product Details
expand_less
Part Description Oil Seal
Heavy Duty Supplier Yes
Shaft Diameter 1.496
Material Fluoro-Elastomer
Width (inch) 0.276
Unit of Dimension Metric
Housing Bore (MM) 52.000
Thickness 0.276
Outside Diameter (Inch) 2.055
Series 711000
Type 32
Shaft (MM) 38.000
Outside Diameter (MM) 52.200
Prop 65 Label (Yes/No) No
Housing Bore (Inch) 2.047
Helix Type Clockwise-Spiral Lip Design
Outside Diameter 2.055
WIDTH (MM) 7.000
Width 0.276
Housing Bore 2.047
Grade Type Premium
Shaft (Inch) 1.496
Part Terminology Axle Output Shaft Seal

Features & Benefits
expand_more
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.

Application Summary
expand_more

2005-2019 Chrysler 300 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle, with Mercedes-Benz 175mm Ring Gear Differential); 2007-2018 Dodge Charger (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2005-2008 Dodge Magnum (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2006-2009 Mercedes-Benz E350 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2006-2007 Mercedes-Benz C350 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2003-2005 Mercedes-Benz C240 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2006-2007 Mercedes-Benz C280 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2003-2005 Mercedes-Benz C320 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2004-2005 Mercedes-Benz E320 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2004-2006 Mercedes-Benz E500 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2003-2006 Mercedes-Benz S430 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle); 2003-2006 Mercedes-Benz S500 (Front Right) (Drive: AWD / Qualifier: with 175 (mm) Ring Gear, with ZF Axle)
