| Ring Gear Thickness | 11.2 |
| Heavy Duty Supplier | Yes |
| Tooth Quantity | 124 |
| Flywheel Cup Depth/Step Height | 0 |
| Number of teeth, starter ring gear | 124 |
| Dowel hole diameter | 6 |
| Crank Hole Dia. | 10.45 |
| Flywheel friction surface outer diameter | 10.2362 |
| Centering diameter / dowel hole | 10.5512 |
| Ring Gear Major Dia. | 315 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 302 |
| Flywheel matches Clutch | Flywheel matches Clutch |
| Flywheel Friction Surface Inner diameter | 145 |
| Bolt hole PCD crankshaft | 66 |
| Flywheel Inner Diameter | 5.709 |
| Flywheel Thickness [mm] | 1.063 |
| Ring Gear Chamfer Side | Not available |
| Flange Thickness | 12.45 |
| Crank To Friction Surface | 28.81 |
| I.D. for Pilot | 31.9 |
| Number of Teeth | 124 |
| Ring Gear Chamfer matches OE | Ring Gear Chamfer matches OE |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 10.236 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Not available |
| Ring Gear Mounting O.D. | 289 |
| Number Of Mounting Bores | 24 |
| Outside Diameter | 315 |
| Has Dowel Pins | with Dowel Pins |
| Bolt hole PCD clutch pres.plte | 268 |

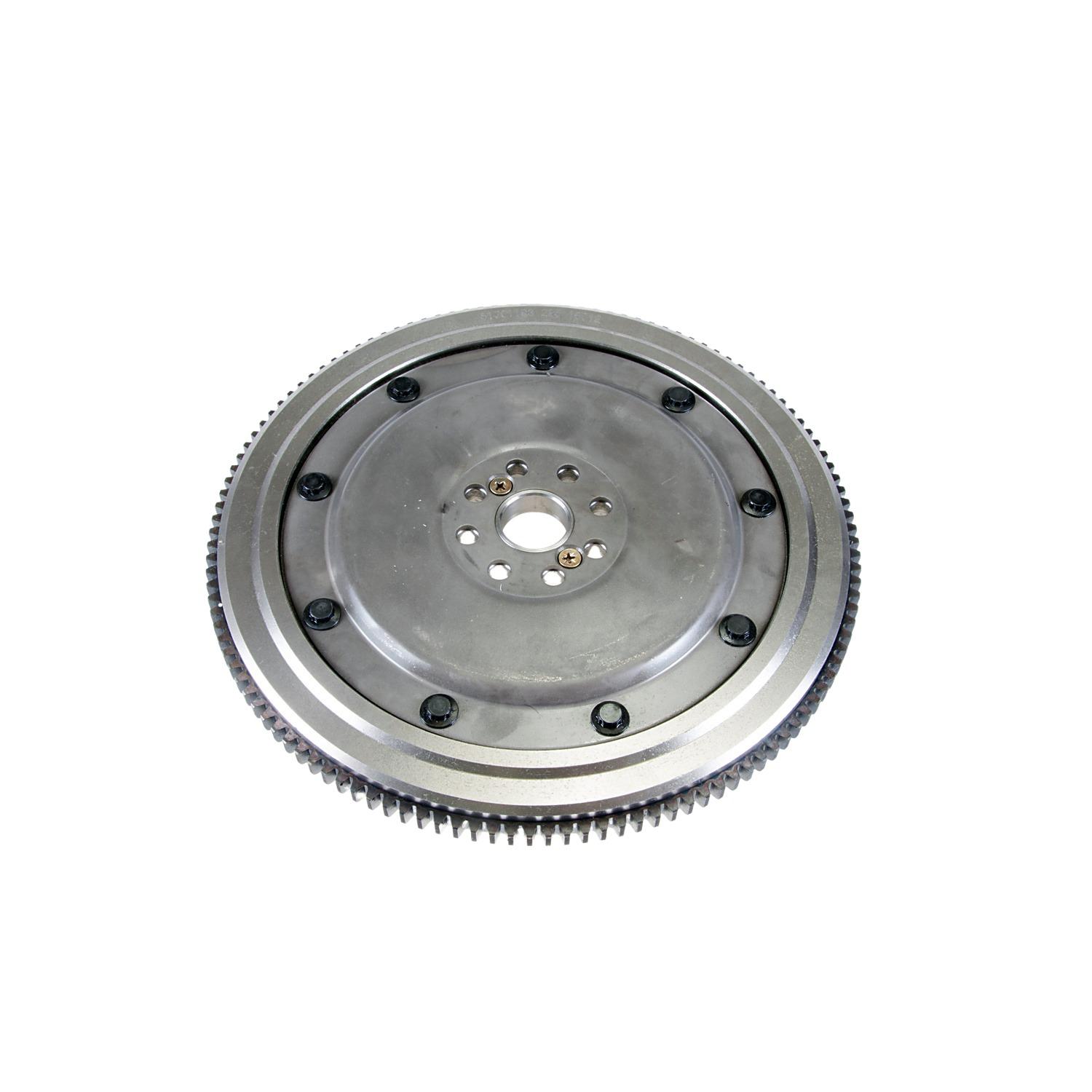

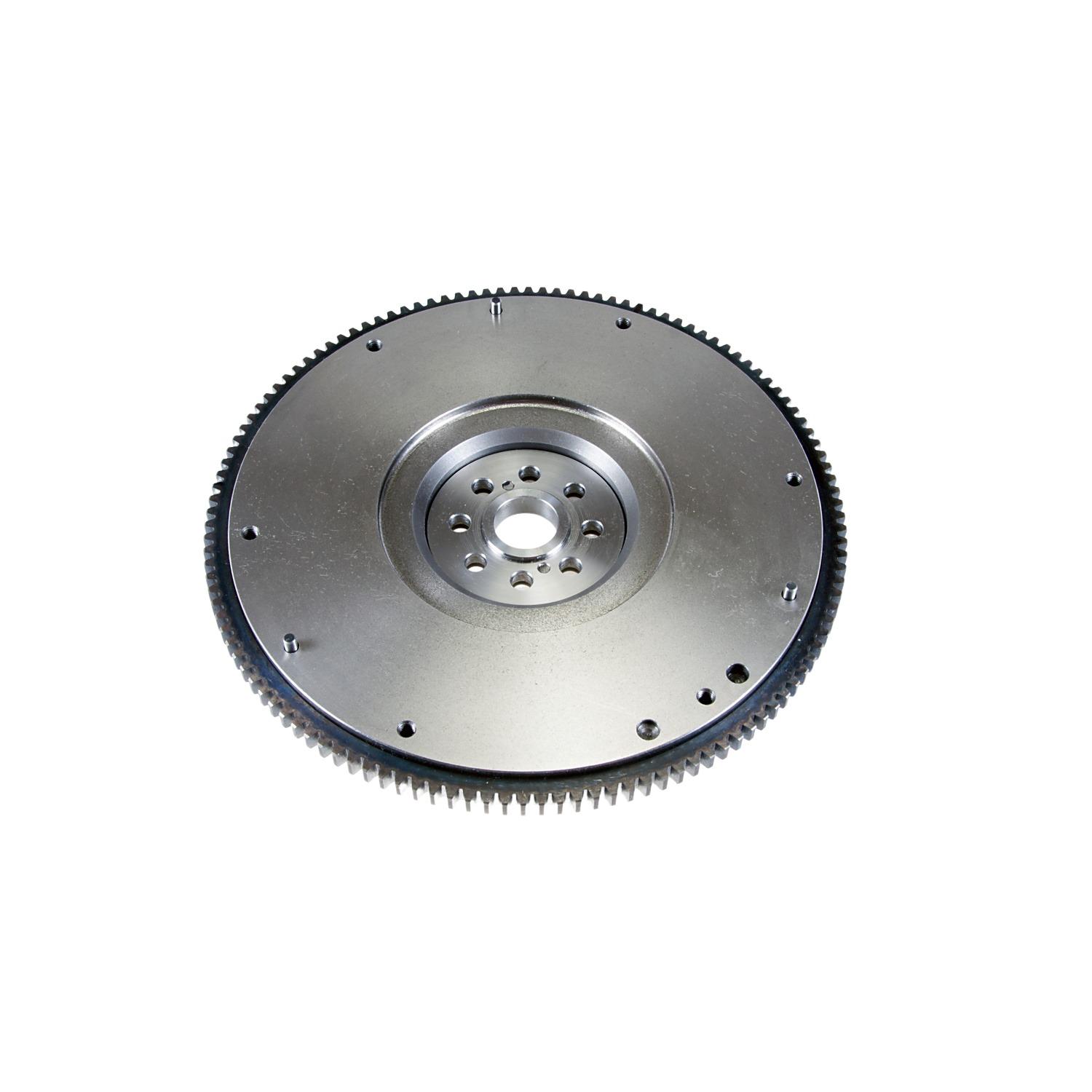

| Part Terminology | Clutch Flywheel |
