| Flange Shape | MODIFIED TRIANGLE |
| Heavy Duty Supplier | Yes |
| Wheel Pilot Diameter | 77.7 |
| Flange Bolt Hole Diameter | M14X1.5 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 14.3 |
| Anti Lock Braking System Type | Tone Ring with sensor |
| Driven/Non-Driven | Driven |
| Brake Pilot Diameter | 78.4 |
| Spline Quantity | 33 |
| Stud Threads per Inch | 18 |
| Bearing Type | TAPER |
| Knuckle Bolt Hole Size | M14X1.5 |
| Flange Bolt Hole Quantity | 3 |
| Drive Type | Driven |
| Weight | 11.177 |
| Bearing Generation | Gen 3 |
| Bolt Circle Diameter | 5.500 |
| Stud Thread Type | Fine with Medium Fit (2A) |
| Flange Diameter | 7.2 |
| Wheel Stud Size (Inches) | 9/16-18UNF-2A |
| Anti Lock Braking System | Yes |
| Flange Included | Yes |
| Flange Offset | 46.8 |
| Knuckle Bolt Thread Pitch | 1.5 |

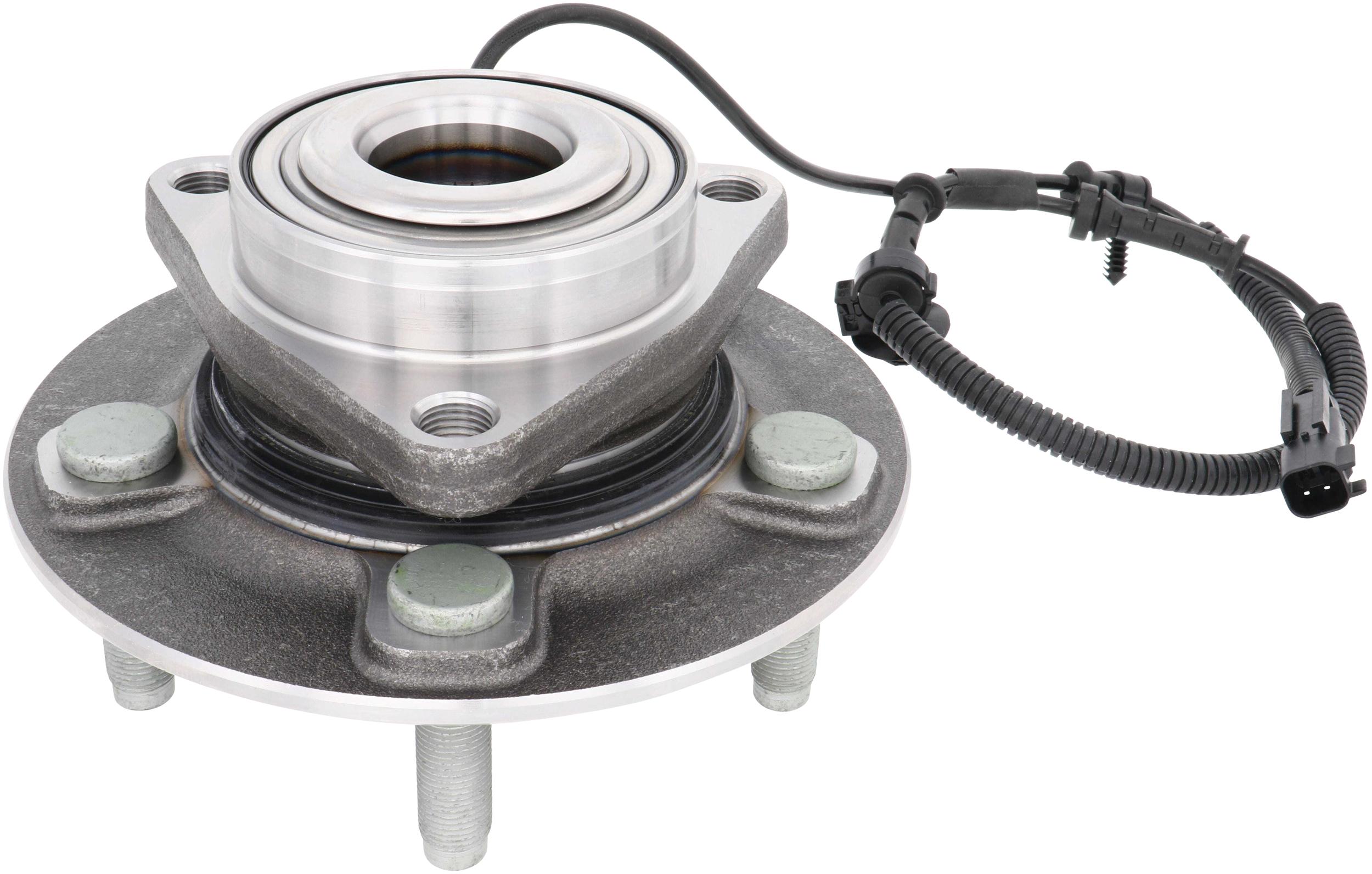

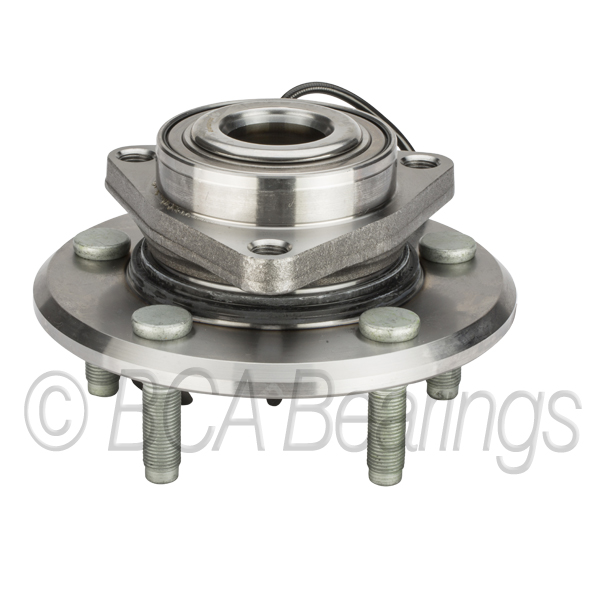

| Part Terminology | Wheel Bearing and Hub Assembly |
